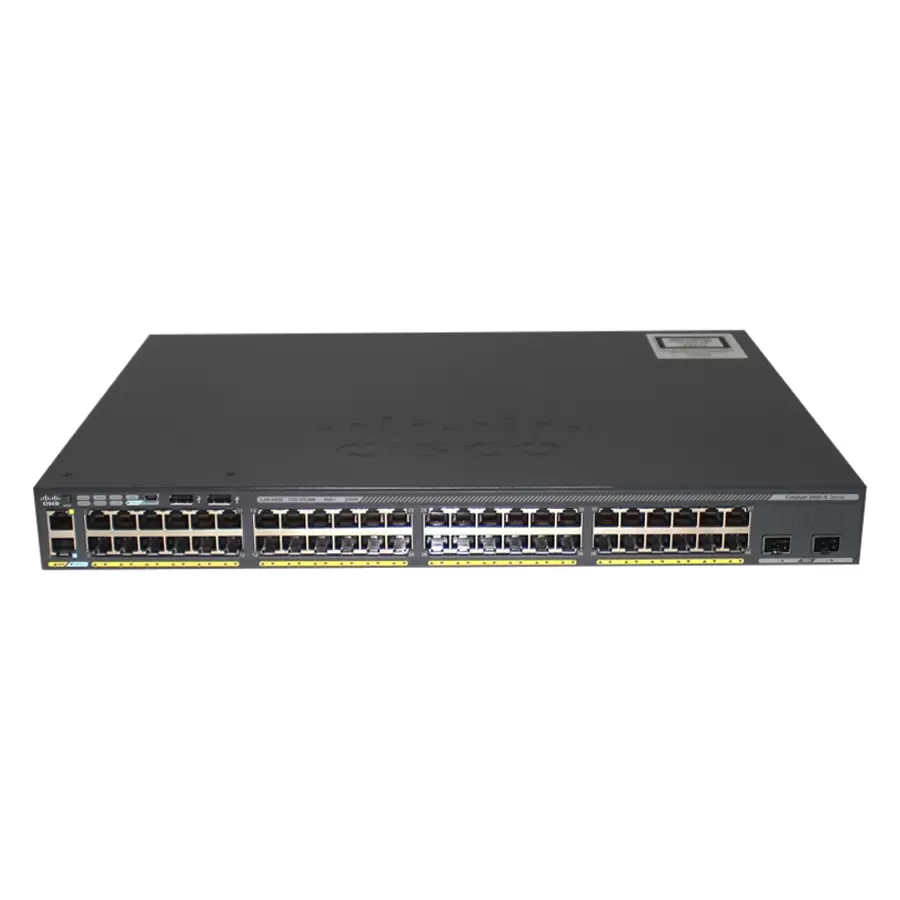

Switch Cisco Catalyst WS-C2960XR-48LPD-I

  • Thương Hiệu: Cisco
  • Mã: WS-C2960XR-48LPD-I
  • Port : 48 cổng Giga 10/100/1000 Mps Base-T POE với 02 Uplink GE SFP+

Giá: Liên hệ

Thông Số Kỹ Thuật Switch Cisco Catalyst WS-C2960XR-48LPD-I

Hardware specifications
Flash Memory 128 MB
DRAM 512 MB
CPU APM86392 600 MHz dual core
Console ports USB (Type B), Ethernet (RJ-45)
Storage interface USB (Type A) for external flash storage
Network management interface 10/100 Mbps Ethernet (RJ-45)
Interface 48 10/100/1000 Ethernet ports PoE, PoE+
Uplink interfaces 2 x 10Gb SFP+
Performance and scalability
Forwarding bandwidth 108 Gbps
Switching bandwidth 216 Gbps
Maximum active VLANs 1023
VLAN IDs available 4096
Maximum Transmission Unit (MTU)-L3 packet 9198 bytes
Jumbo frame – Ethernet frame 9216 bytes
Forwarding rate: 64-byte Layer 3 packets 130.9 Mpps
Scalability (Default/VLAN/IPv4)
Unicast MAC 16,000 / 32,000 / 16,000
IPv4 unicast direct routes 4000 / 250 / 16,000
IPv4 unicast indirect routes 1250 / 250 / 8000
IPv6 unicast direct routes 4000 / 250 / 0
IPv6 unicast indirect routes 1250 / 250 / 0
IPv4 multicast routes and IGMP groups 1000 / 1000 / 1000
IPv6 multicast groups 1000 / 1000 / 0
IPv4 QoS ACEs 500 / 500 / 500
IPv6 QoS ACEs 250 / 500 / 0
IPv4 security ACEs 1000 / 1000 / 875
IPv6 Security ACEs 500 / 500 / 0
IPv4 policy-based routing ACEs 500 / 0 / 375
Voltage and power ratings
Predicted reliability (MTBF in hours**) 275,430
Power rating 0.48KVA
Input voltage and current 90 to 264 VAC / 6A to 3 A / 50 to 60 Hz
PoE and PoE+ power capacity 12 ports up to 30W, 24 ports up to 15.4W
Available PoE power 370W
Dimensions
Inches (H x D x W) 1.75 x 16.0x 17.5
Centimeters (H x D x W) 4.45 x 40.8 x 44.5
Pounds 14.0
Kilograms 6.4
Environmental ranges
Operating temperature up to 10,000 ft (3000 m) 23º to 113ºF / -5º to 45ºC
Operating altitude (Feet/Meters) Up to 10,000/Up to 3000
Operating relative humidity 10% to 95% noncondensing
Safety and compliance (Safety) UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1
